Understanding the Parts of an HVAC System



An HVAC system is an important part of any home, providing essential heating, ventilation, and air conditioning to keep us comfortable in our living space. But what exactly makes up an HVAC system? Keep reading to find out the main parts of HVAC system and how they work together.


The thermostat is a key component of an HVAC system. As the director of HVAC operations, the thermostat monitors indoor temperatures and then calls for heating or cooling depending on the setting and desired temperature.

The main parts of a thermostat include the temperature sensor, a control dial or buttons for setting the desired temperature, a switch for the fan, and a relay for switching the HVAC system on and off. The temperature sensor is typically a thermistor, which detects the ambient temperature and sends a signal to the thermostat. The control dial or buttons are used to select the desired temperature, and the switch for the fan allows the user to select either low, medium, or high speed. Finally, the relay is responsible for switching the HVAC system on and off, depending on the temperature setting.

In addition to these main parts, some thermostats also include a display screen and additional features, such as a timer, a humidistat, or a temperature sensor override. More advanced thermostats come with smart technology that allows for remote operation and advanced temperature sensing.

Heating and Air Unit


The main component of an HVAC system is the heating and cooling unit. Depending on the system, there could be multiple units or one packaged unit. An HVAC system might include an air conditioner and furnace or a single heat pump. The air conditioner is used to cool the air in the home by removing heat and humidity. It is typically installed outside of the house, and the cooled air is distributed through the ductwork to the interior of the home. The furnace is used to heat the air in the home by running on fuel like natural gas or using electricity to produce heat. The heat is then distributed through the ductwork to the interior of the home.

A heat pump is a combination of an air conditioner and a furnace. It can be used to both heat and cool the air in the home. In the summer, the heat pump works in the same way as an air conditioner, removing heat and humidity from the interior of the home. In the winter, the heat pump works in the opposite way, absorbing heat from the outside air and transferring it to the interior of the home. All of these components work together to keep the home comfortable and energy efficient.

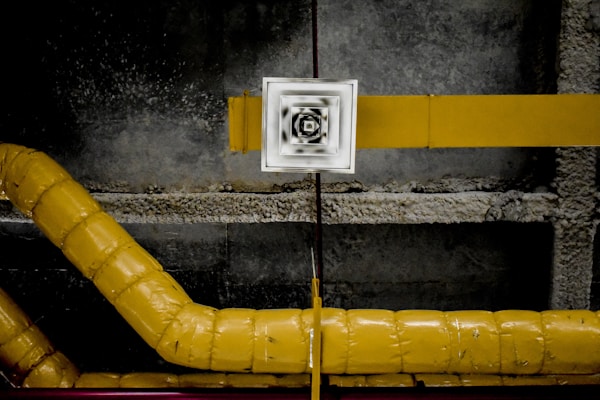

The ductwork is a critical part of the system’s overall performance. It is responsible for distributing heated or cooled air throughout the space. It consists of a network of pipes or tubes, usually made out of metal, that carry air from the air handler to the various rooms or areas of the building. The ducts distribute air that has been passed through the air filter to remove dust, pollen, and other airborne impurities from the air to improve indoor air quality. The ductwork is typically connected to the air handler with an insulated flexible duct, which helps keep the air warm or cool as it travels from the unit to the vents. The ductwork also helps to reduce noise from the air handler and can also help to improve indoor air quality.

The ducts are usually made from either galvanized steel or aluminum and come in a variety of sizes to fit the needs of the building. Vents are installed in the walls and ceilings of the space, which are connected to the ductwork. The vents allow the air to be distributed evenly throughout the space. The air is then released into the space through the vents, where it is used to regulate the temperature and humidity levels.

The main parts of an HVAC system are essential for providing a comfortable living environment. They are responsible for properly circulating air and maintaining temperature levels indoors, ensuring that people can enjoy a pleasant and healthy atmosphere. Therefore, it is important to make sure that all components of an HVAC system are properly installed and regularly maintained.
